User Guide

These guides are quick tutorials on how to perform basic tasks in Lemur.

Create a New Authority

Before Lemur can issue certificates you must configure the authority you wish use. Lemur itself does not issue certificates, it relies on external CAs and the plugins associated with those CAs to create the certificate that Lemur can then manage.

../_images/create.png

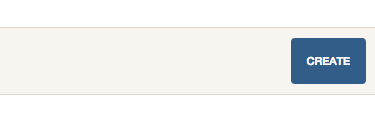

In the authority table select “Create”

../_images/create_authority.png

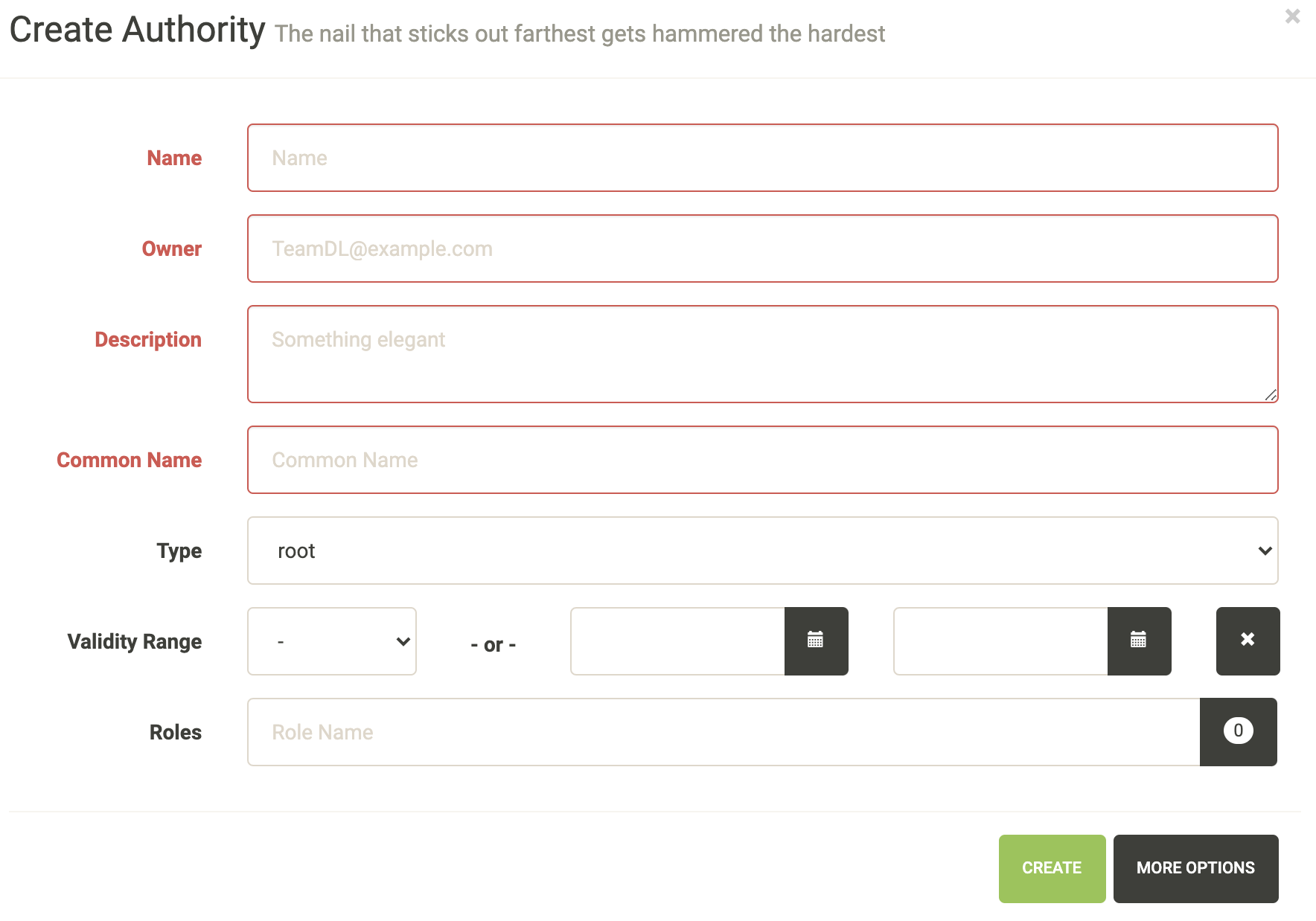

Enter an authority name and short description about the authority. Enter an owner, and certificate common name. Depending on the authority and the authority/issuer plugin these values may or may not be used.

../_images/create_authority_options.png

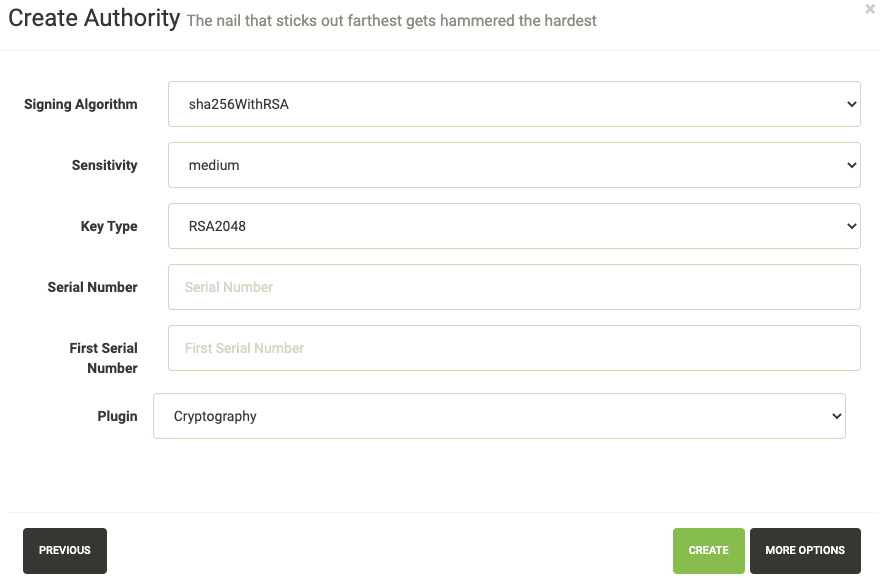

Again how many of these values get used largely depends on the underlying plugin. It is important to make sure you select the right plugin that you wish to use.

Create a New Certificate

../_images/create.png

In the certificate table select “Create”

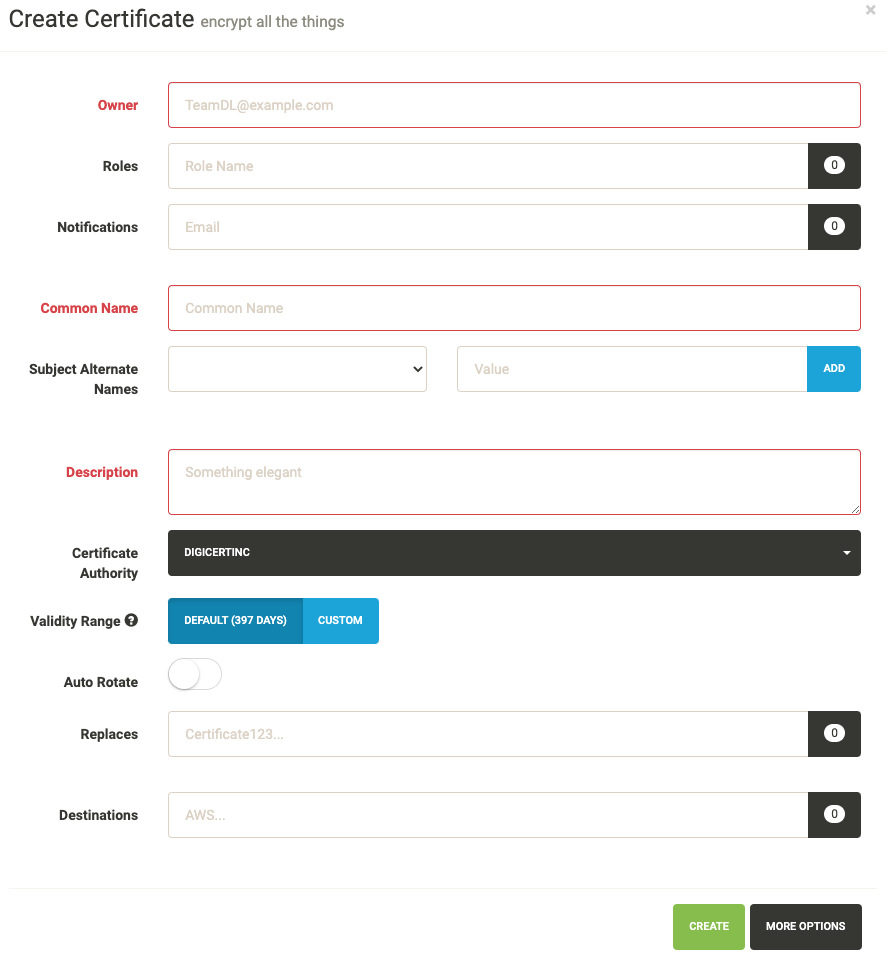

../_images/create_certificate.png

Enter an owner, common name, short description and certificate authority you wish to issue this certificate. Depending upon the selected CA, the UI displays default validity of the certificate. You can select different validity by entering a custom date, if supported by the CA.

You can also add Subject Alternate Names or SAN for certificates that need to include more than one domains, The first domain is the Common Name and all other domains are added here as DNSName entries.

You can add notification options and upload the created certificate to a destination, both of these are editable features and can be changed after the certificate has been created.

../_images/certificate_extensions.png

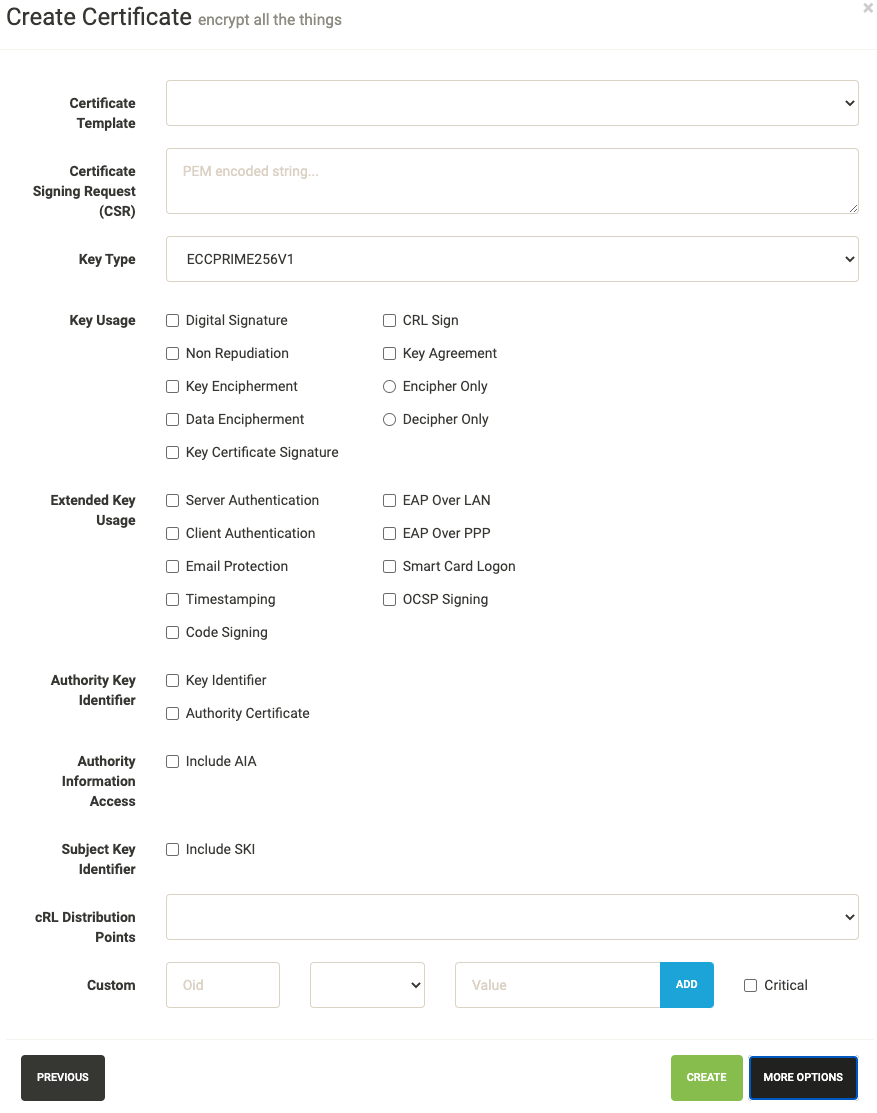

These options are typically for advanced users. Lemur creates ECC based certificate (ECCPRIME256V1 in particular) by default. One can change the key type using the dropdown option listed here.

Import an Existing Certificate

../_images/upload_certificate.png

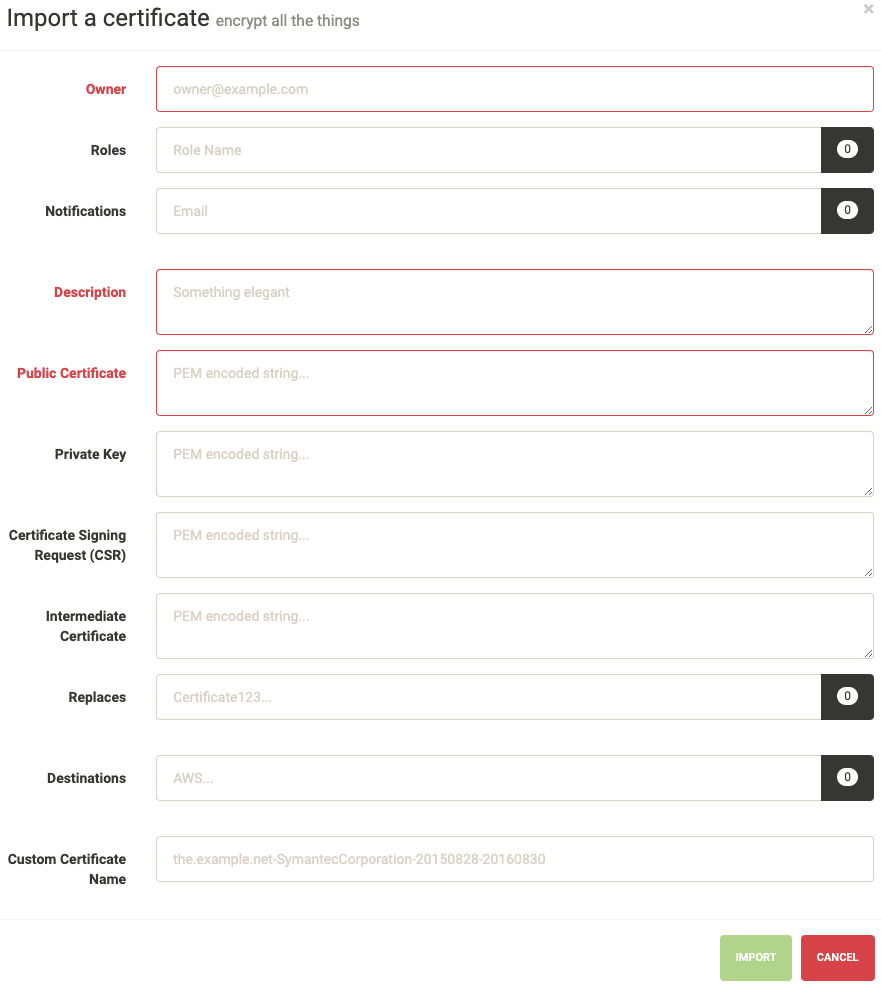

Enter an owner, short description and public certificate. If there are intermediates and private keys Lemur will track them just as it does if the certificate were created through Lemur. Lemur generates a certificate name but you can override that by passing a value to the Custom Certificate Name field.

You can add notification options and upload the created certificate to a destination, both of these are editable features and can be changed after the certificate has been created.

Create a New User

../_images/settings.png

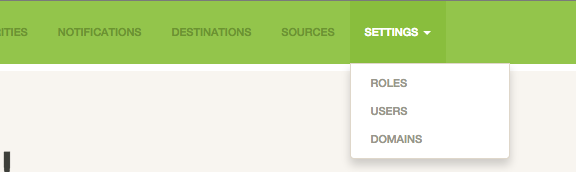

From the settings dropdown select “Users”

../_images/create.png

In the user table select “Create”

../_images/create_user.png

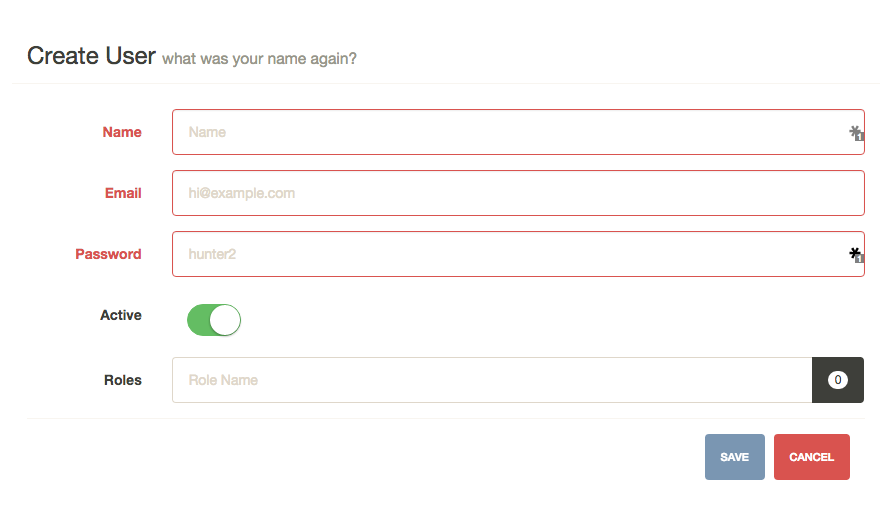

Enter the username, email and password for the user. You can also assign any roles that the user will need when they login. While there is no deletion (we want to track creators forever) you can mark a user as ‘Inactive’ that will not allow them to login to Lemur.

Create a New Role

../_images/settings.png

From the settings dropdown select “Roles”

../_images/create.png

In the role table select “Create”

../_images/create_role.png

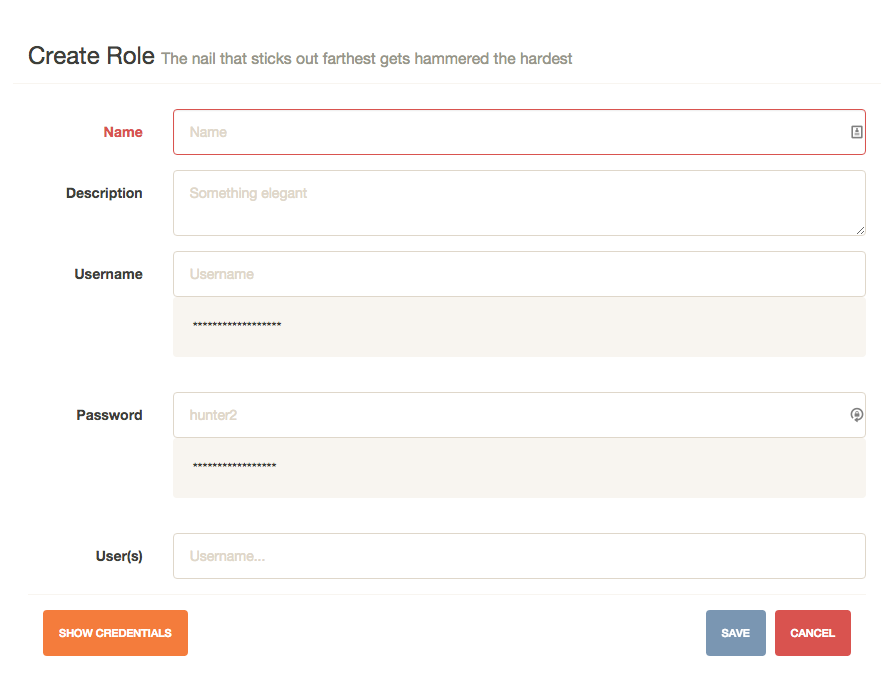

Enter a role name and short description about the role. You can optionally store a user/password on the role. This is useful if your authority require specific roles. You can then accurately map those roles onto Lemur users. Also optional you can assign users to your new role.
